Product Description
|
Item
|
General Parameter
|
|
|
||
|
Model
|
ITP-40000mAh-20S1P
|
|
|
||
|
Standard capacity(0.5C)
|
Typical:40Ah
Min:40Ah |
|
|
||
|
Rated voltage
|
72V
|
|
|
||
|
Max.Charge voltage
|
≤ 84V(standard:84V)
|
|
|
||
|
Discharge Cut-off voltage
|
60V
|
|
|
||
|
Standard charge current
|
≤ 8.0A
|
|
|
||
|
Rated Continuous discharge current
|
40A
|
|
|
||
|
Max continuous discharge current
|
≤ 40A
|
|
|
||
|
Over-Current
Protection value |
Continuous working current
|
|
≤ 40A
|
||
|
|
Time-delay discharge current
|
|
40A≤ I ≤50A
|
||
|
|
Max Instantaneous discharge current
|
|
50A≤ I ≤80A
|
||
|
|
Single cell charge protection voltage
|
|
4.2V±0.05
|
||
|
|
Single cell cut-off voltage
|
|
3.0V±0.05V
|
||
|
Impedance(Max,at 1000Hz.)
|
≤ 150mΩ
|
|
|
||
|
Battery dimension
|
MAX L215×W165×H340mm
|
|
|
||
|
Weight(approx)
|
20.5kg
|
|
|
||
|
Mass Ratio of Energy
|
193Wh/Kg
|
|
|
||
|

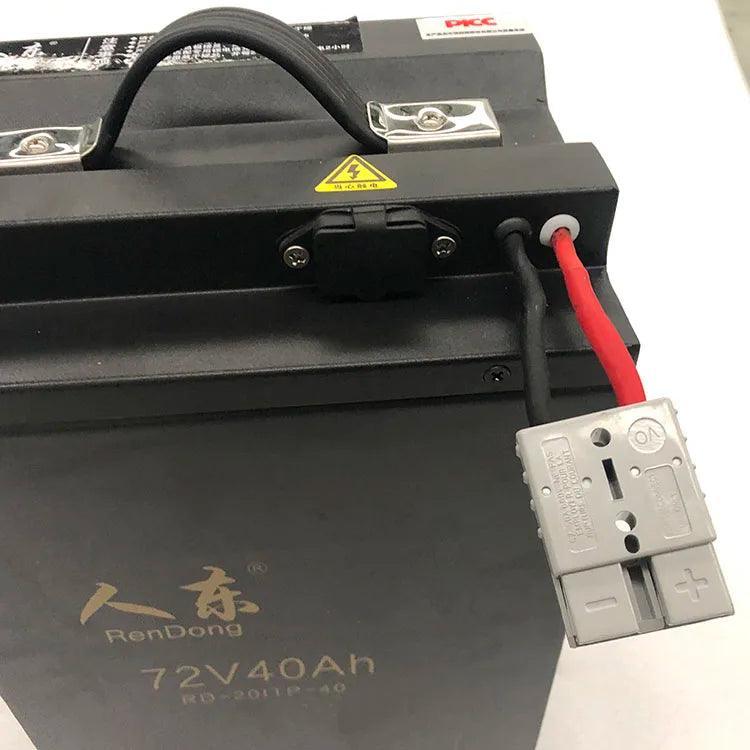

Interface
|
charge/discharge:
3 pins socket and Anderson plug |
|
|
||
|
Working Condition (CC/CV)
|
Standard
|
-20℃~60℃
|
|
||
|
|
Humidity
|
50%~85%
|
|
||
|
|
Storage
|
0℃~40℃
|
|
||
