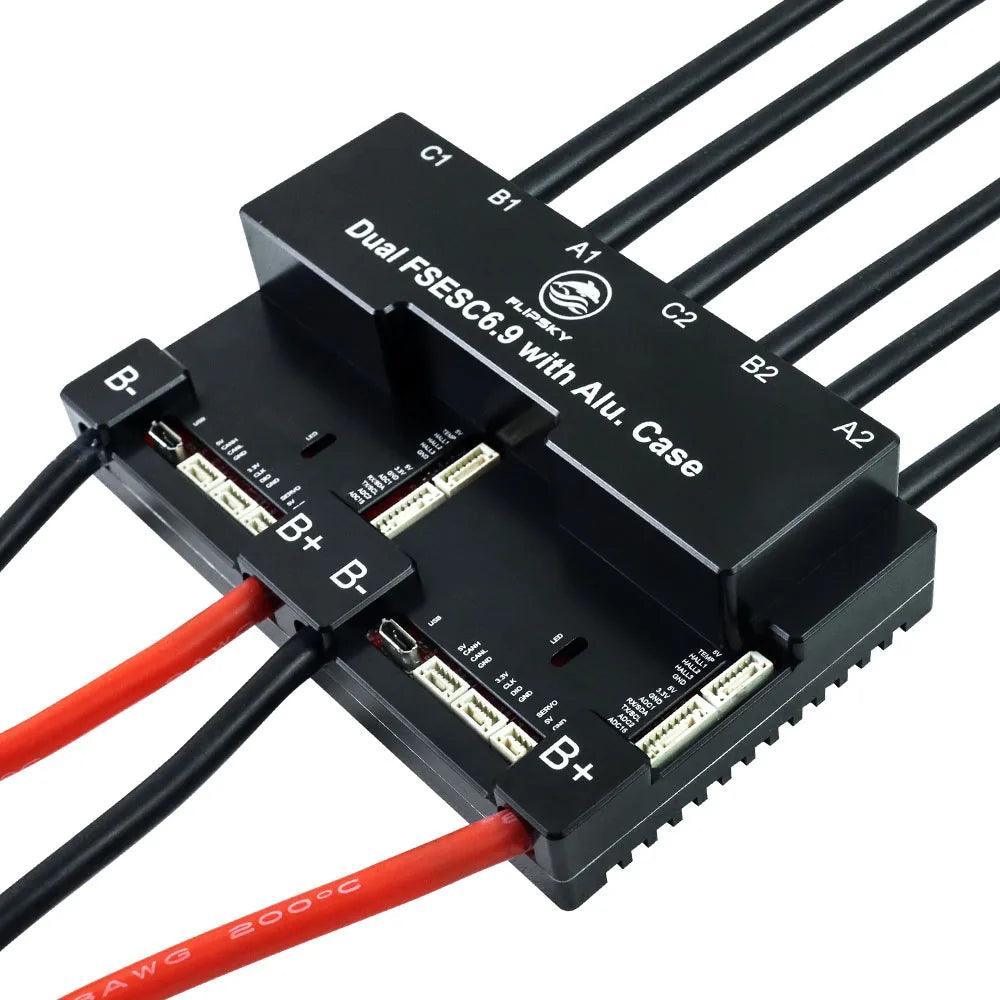

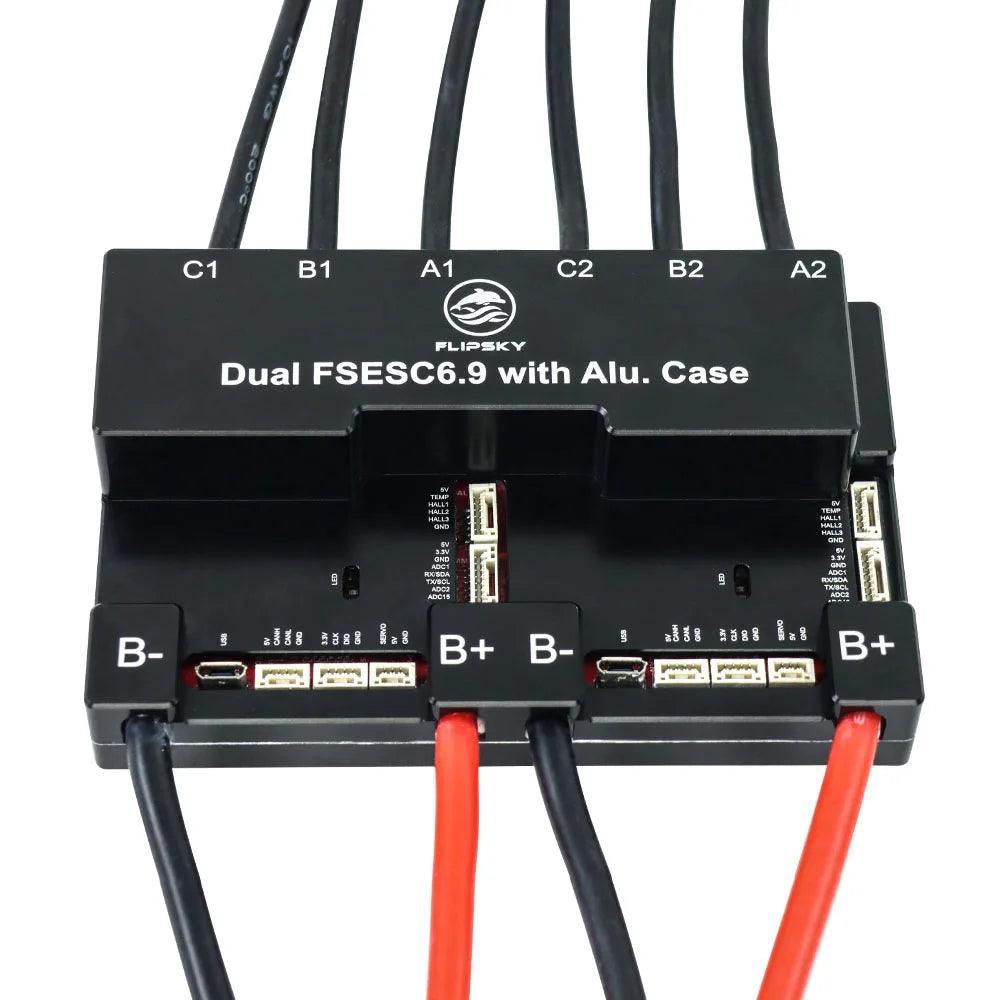

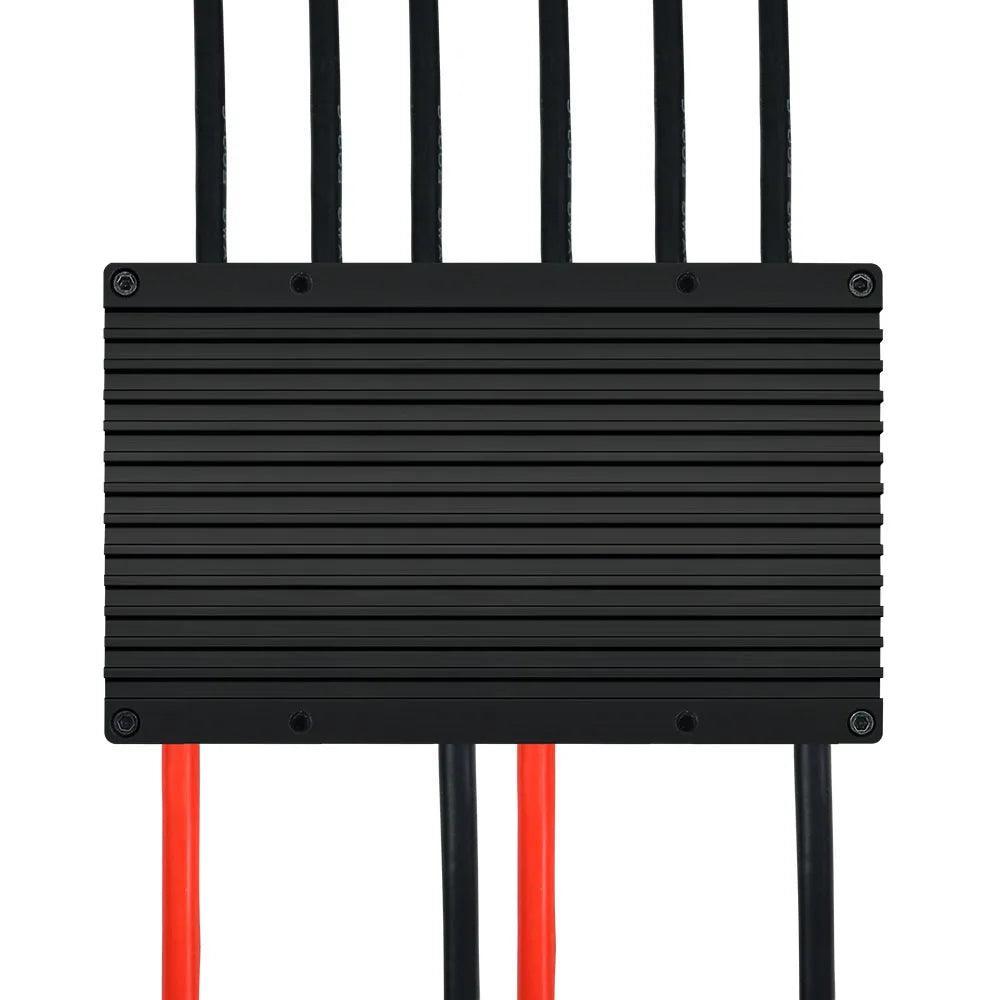

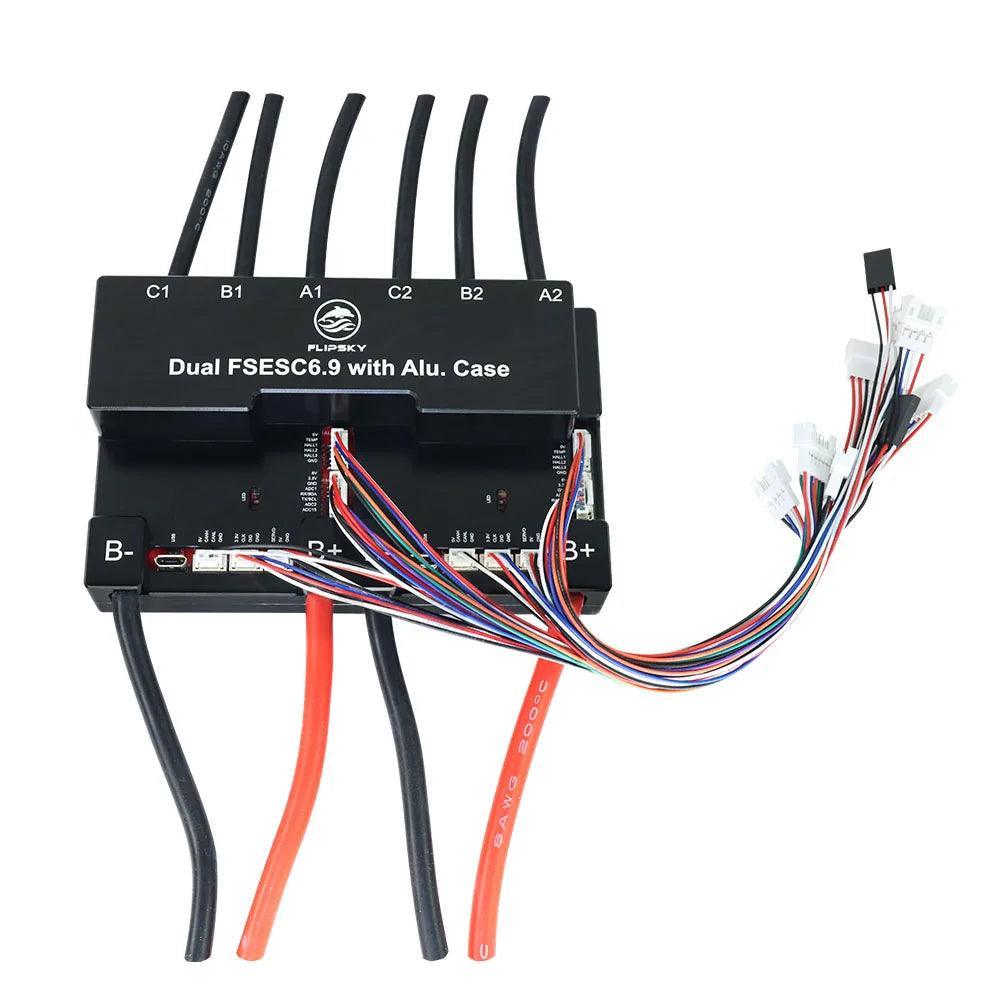

Flipsky Dual FSESC 6.9 100A Single 200A Dual Based on VESC 6 ESC Motor Controller with Aluminum Case for Robot Ebike Scooter
Specification
| Hardware | V6.9 |
| Firmware | fw5.2 |
| Instantaneous current | 100A continuous / 200A peak |
| Voltage | 8V-60V (Cells: safe for 4-12S LiPo) |
| BEC type | Internal driver support |
| Frequency | PWM input |
| Reverse | Yes |
- Firmware: Latest Version
- Continuous current: Continuous 100A single, total 200A , Instantaneous current 400A per single, total 800A for system instantaneous current. values depend on the mounting and ambient temperature around the device!
- Voltage: 14V-60V(safe for 4S to 12S, voltage spikes may not exceed 60V! )
- BEC: 5V@1A,5V/1A output for external electronics
- ERPM: 150000
- Control Interface Ports:USB,CAN,UART
- Supported Sensors:ABI,HALL,AS5047,AS5048A
- Input Set Support:PPM, ADC, NRF, UART, SPI, IIC
- Modes:DC, BLDC, FOC (sinusoidal)
- Regenerative capacity: Yes
- Programmable: Yes
- Motor wire: 10AWG
- Power cable:8AWG
- Size:127.6x78.4x32.5mm(Including Alu case)
Product Advantages
Wiring Diagram
