Free maintenance deep cycle rechargeable 48V 200ah lithium ion lifepo4 battery Tesla Powerwall Wall-mounted battery for Solar
Product Parameter
|
Model
|
LD-PW-48-100
|
LD-PW-48-150
|
LD-PW-48-200
|
||
|
Nominal Voltage(V)
|
48
|
48
|
48
|
||
|
Nominal Capacity(Ah)
|
100
|
150
|
200
|
||
|
Usable Capacity(Wh)
|
5120
|
4800
|
7200
|
||
|
Dimension(mm)L
|
430
|
482
|
482
|
||
|
Dimension(mm)W
|
430
|
410
|
410
|
||
|
Dimension(mm)H
|
217
|
220
|
264
|
||
|
Weight(Kg)
|
52
|
50
|
100
|
||
|
Cycle Life
|
6000 , 25℃
|
5000 , 25℃
|
5000 , 25℃
|
||
|
Communication Port
|
RS232 .RS485 .CAN
|
RS232 .RS485 .CAN
|
RS232 .RS485 .CAN
|
||
|
Working Temperature ℃
|
-20~55
|
-20~55
|
-20~55
|
||
|
Discharge Voltage (V)
|
40.5-42.5
|
40.5-42.5
|
40.5-42.5
|
||
|
Charge Voltage(V)
|
53.2~54
|
53.2~54
|
53.2~54
|
||
|
Internal Impedance(mΩ)
|
≤50
|
≤50
|
≤50
|
||
|
Charge / Discharge Current (A)
|
50 (Recommended)
|
75 (Recommended)
|
100(Recommended)
|
||
|
100 (Max)
|
150 (Max)
|
200 (Max)
|
|||
|
Design Life(Years)
|
10+
|
10+
|
10+
|
||
|
ODM/OEM
|
customizable
|
customizable
|
customizable
|
||
Product Advantage
The computer obtains the internal information of the battery
cabinet through RS485, RS232, CAN.

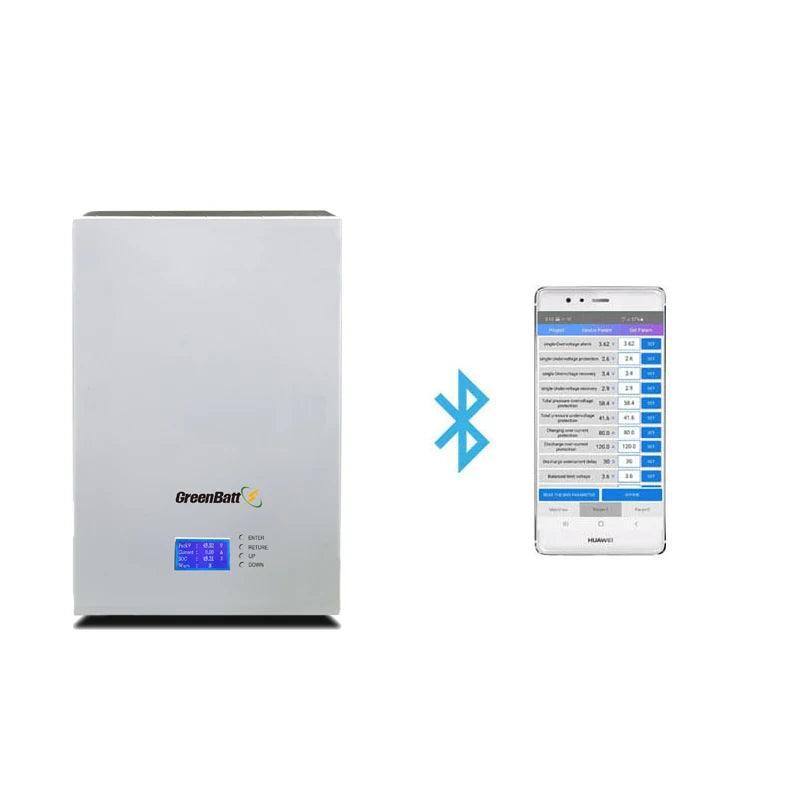

The computer obtains the internal information of the
battery pack via Bluetooth.
INTERNAL WORK COMPARISON
Regular products,
solid materials
Independent cell with national patent
Recycling used batteries, small workshop inferior cell
Real shot
Application scenario
Company Profile
Henan Lithium Power Source Co., Ltd began to research and produce lithium battery and key related materials with Chinese Academy of Sciences 713 institute in 2001.After years of accumulation of technology experience,it was officially established in 2009, the registered capital is 300 million yuan.The company located in Xinxiang (Henan) chemical and physical power industrial park, covers an area of 400 acres, east of Beijing-Hong Kong-Macao freeway, north of Changyuan-Jiyuan freeway. The company has been developed over a long period of time, which has owned proprietary intellectual property rights and reached advanced level on lithium battery research, production and marketing.The battery products have been affirmed which conform to MIIT standards for electric vehicles.
Certificates
Shipping and payment methods
PACKING
Precautions for the use of lithium batteries
1. The battery needs to be handled gently during use to avoid damage to internal components;
2. Batteries are not allowed to be used in series or parallel;
3. The battery module shall not be loose, shake, squeeze and deform when placed inside the battery shell; 4. It is forbidden to plug the positive and negative wires of the battery into each other,reverse the load, or connect with the load of an electric vehicle that does not match;
5. The battery needs to be charged in time or within 24 hours after discharge; 6. During battery storage, charge the battery every 1 month;
7. It must be charged with a matching charger, and the use of lead-acid battery charger is strictly prohibited; 8. Unauthorized disassembly is strictly prohibited during use; 9. It is strictly forbidden to use and leave the battery near a heat source or high temperature source (such as fire, heater, etc.); 10. It is strictly forbidden to immerse the battery in water, and place it in a cool and dry environment when it is not in use.
